Control Cables

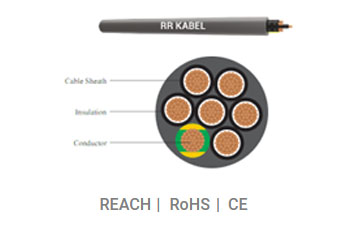

• These cables are used for flexible use for medium mechanical stresses with free movement without tensile stress of forced movements in dry, moist and wet rooms but not suitable for outdoor installation. Fit for measuring and control cables in tool machines, conveyor belts production lines in machinery production, in air-conditioning and steel production. JZ-500 is also available in oil resistant variant as JZ-500
• Cable Construction :
  • Bare copper, fine wire conductors, to EN 60228 Cl.5.
  • Core insulation of special PVC TI2 EN 50363-3.
  • Black core with continuous white numbering according to DIN VDE 0293.
  • Green/yellow earth core in the outer layer (3 cores and above).
  • Cores stranded in layers with optimal lay-length.
  • Outer sheath of special PVC, TM2 to EN 50363-4.1.
  • Colour grey (RAL 7001).

Catalogue Link

• Wiring cable in tool machinery, conveyor belts and production lines, plant engineering, Industrial machinery, air conditioning, steel production plants and rolling mills.
• Cable Construction :
  • Bare copper, fine wire conductors, as per EN60228 Cl. 5.
  • Special PVC core insulation TI2, to EN 50363-3.
  • Black Core with continuous white numbering to DIN VDE 0293.
  • Green/yellow earth core in outer layer (3 cores and above).
  • Cores stranded in layers with optimal lay-length.
  • Special PVC outer sheath TM2, to EN 50363-4-1.
  • PVC self-extinguishing and flame retardant according to IEC 60332-1-2.

Catalogue Link

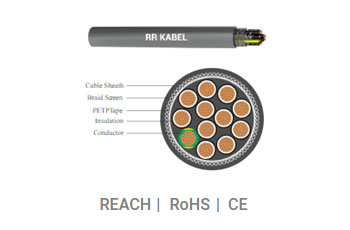

• For use as a data cable in control circuits, in tool-making and machine industries as well as a signal cable in computer systems and electronics. The more usual PVC inner sheath has been removed in the cable, thus reducing the total diameter of the cables considerably and thereby reducing the bending radius, total weight etc. The dense screening assures disturbance-free transmission of all signals and impulses.
• Cable Construction :
  • Bare copper, fine wire conductors, to EN 60228 Cl.5
  • Core insulation of special PVC TI2, EN 50363-3.
  • Black Core with continuous white numbering to DIN VDE 0293.
  • Green/yellow earth core in outer layer (3 cores and above).
  • Cores stranded in layers with optimal lay-length.
  • Plastic foil over the laid up cores.
  • Tinned copper, braided screen, approx. 85% coverage.
  • Cores stranded in layers with optimal lay-length.
  • Colour grey (RAL 7001).

Catalogue Link

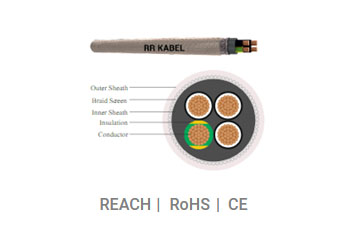

• For use as a data and control cable in machinery, computer systems etc. as well as a signal cable for electronics. The high level of screening ensures a high degree of interference protection. The screening density assures disturbance-free transmission of all signals and impulses.
• Cable Construction :
  • Bare copper, fine wire conductors, to EN 60228 Cl.5.
  • Core insulation of PVC TI2 EN 50363-3.
  • Black Core with continuous white numbering to DIN VDE 0293.
  • Green/Yellow earth core in outer layer (3 cores and above).
  • Cores stranded in layers with optimal lay-length.
  • Special PVC inner jacket.
  • Tinned copper, braided screen, approx. 85% coverage.
  • Transparent special PVC outer sheath.

Catalogue Link

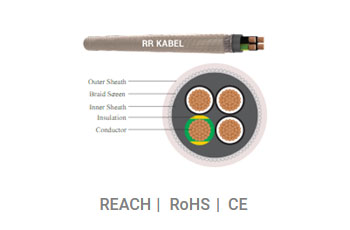

• These cables are used as measuring and control cables in tool machinery, plant installation, power stations and in data equipment. The braided screen offers best possible protection against mechanical damage. The galvanised coating on the steel wire braiding not only helps protect against corrosion, but also notably improves the soldering performance.
• Cable Construction :
  • Bare copper, fine wire conductors, to EN 60228 Cl.5.
  • Core insulation of PVC TI2, EN 50363-3.
  • Black Core with continuous white numbering to DIN VDE 0293.
  • Green/Yellow earth core in outer layer (3 cores and above).
  • Cores stranded in layers with optimal lay-length.
  • Special PVC inner jacket.
  • Galvanized steel wire screening.
  • Special PVC outer jacket.
  • Colour transparent (also available in grey).

Catalogue Link

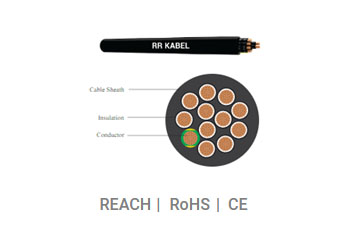

• Wiring cable in tool machinery, conveyor belts and production lines, plant engineering, Industrial machinery, air conditioning, steel production plants and rolling mills. The dense coverage of copper screening offers EMI compliance.
• Cable Construction :
  • Bare copper, fine wire conductors, to EN 60228 Cl.5
  • Core insulation of special PVC TI2, EN 50363-3.
  • Black Core with continuous white numbering to DIN VDE 0293.
  • Green/yellow earth core in outer layer (3 cores and above).
  • Cores stranded in layers with optimal lay-length.
  • PVC inner jacket, Black colour.
  • Special PVC outer sheath TM2, to EN 50363-4.1.
  • Colour Black (RAL 9005).

Catalogue Link

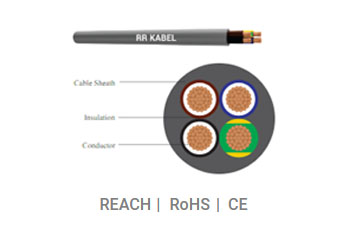

• For use in connections of household appliances and wiring purposes. It is also used in manufacture of cords
• Cable Construction :
  • Bare copper, fine wire conductors, as per EN 60228 Cl.5.
  • Special PVC core insulation TI2, to EN 50363-3.
  • Harmonised core colour to HD 308 (Refer Appendix Table No. 1-1).
  • For cores above 5, black core with continuous white numbering according to DIN VDE 0293.
  • Green-Yellow earth core in outer layer (3 cores and above).
  • Cores stranded in layers with optimal lay-length.
  • Special PVC outer sheath TM2, to EN 50363-4.1.
  • Colour Grey (RAL 7001).

Catalogue Link
