Fuse Terminals

• Elmex offers Terminal Blocks with built-in safety fuse levers.
• These Terminal Blocks accommodate a glass cartridge fuse of 5 mm x 20 mm, 5 mm x 25 mm or 6 mm x 32 mm size.
• The fuse holder is made of special grade phosphor bronze and hence offers low contact resistance.
• A solid brass link type DL4 in place of the fuse makes it possible to use it as a disconnection type terminal block.

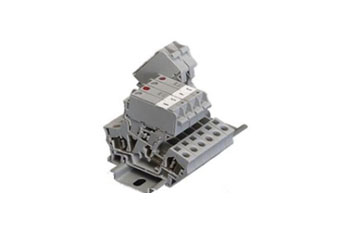

• KUDDF4 is a fuse terminal and a standard terminal block (feed through) combined in one housing, giving cost, time and space economy.
• It occupies the space of one terminal block and works as a pair of terminal blocks - the upper tier with fuse protection, one terminal can be assigned to one pair of signals.
• An LED is provided for blown-fuse indication. Standard operating voltages can be selected from the range of D1=24 VDC, D2=48 VDC, D3=110 VDC, D4=220 VDC, D5=12 VDC, A1=110 VAC and A2=240 VAC.

Catalogue Link

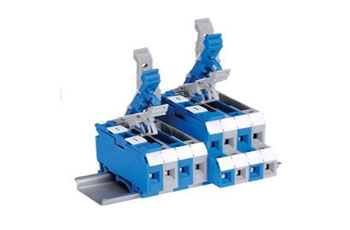

• Applications in Control & Automation require fuse protection facility. Elmex offers Terminal Blocks DCF4 with built-in safety fuse levers. These Terminal Blocks accommodate a glass cartridge fuse of 5 mm x 20 mm, 5 mm x 25 mm size. An LED is provided for blown-fuse indication. Standard operating voltages can be selected from the range of D1=24 VDC, D2=48 VDC, D3=110 VDC, D4=220 VDC, D5=12 VDC, A1=110 VAC and A2=240 VAC.
