Drag Chain Cables

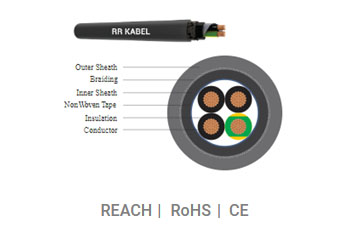

SERVO FD 10855 CP


  • In power chains or moving machine parts suitable for use in measuring, control and regulating circuits. Power circuits for electrical equipment used in automation engineering, assembly lines, production lines, in all kinds of machines and plant engineering.
  • Cable Construction :
    • Bare copper, fine wire conductors according to EN 60228 Cl.6.
    • Core insulation of special TPE.
    • Black core with continuous white numbering according to DINVDE 0293.
    • Green/yellow earth core in the outer layer (3 cores and above).
    • Cores stranded in layers with short lay-length.
    • Non-woven wrapping.
    • TPE inner sheath, grey.
    • Tinned copper braiding.
    • Outer sheath of PUR.
    • Colour grey (RAL 7001).

Catalogue Link

Open Link

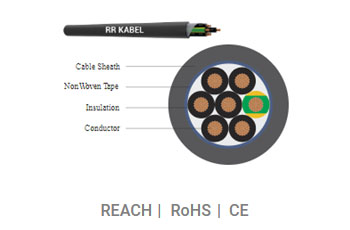

SERVO FD 05855 P


  • For use in power chains or moving machine parts. Suitable for use in measuring, control and regulating circuits. Power circuits for electrical equipment used in automation engineering assembly lines, production lines and in all kinds of machines and plant engineering.
  • Cable Construction :
    • Bare copper, fine wire conductors according to EN 60228 Cl.6.
    • Core insulation of TPE.
    • Black core with continuous white numbering according to DIN VDE 0293.
    • Green/yellow earth core in the outer layer (3 cores and above).
    • Cores stranded in layers with short lay-length.
    • Non-woven wrapping.
    • TPE inner sheath, grey.
    • Tinned copper braiding.
    • Outer sheath of PUR.
    • Colour grey (RAL 7001).

Catalogue Link

Open Link

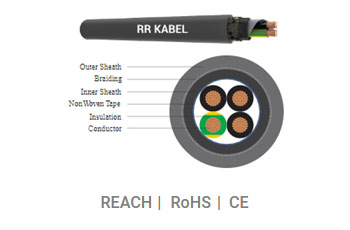

SERVO FD 30810 CP


  • For use in power chains or moving machine parts. Suitable for use in measuring, control and regulating circuits. Power circuits for electrical equipment used in automation engineering assembly lines, production lines and in all kinds of machines and plant engineering. The PVC-inner sheath of these cables raise the mechanical strength of the cable.
  • Cable Construction :
    • Bare copper, fine wire conductors according to EN 60228 Cl.6.
    • Core insulation of special PVC TI2 EN 50363-3.
    • Black core with continuous white numbering according to DINVDE 0293.
    • Green/yellow earth core in the outer layer (3 cores and above).
    • Cores stranded in layers with short lay-length.
    • PVC inner sheath, grey.
    • Tinned copper braiding.
    • Outer sheath of PUR.
    • Colour grey (RAL 7001).

Catalogue Link

Open Link

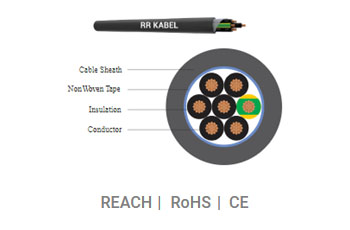

SERVO FD 95810 P


  • For use in power chains or moving machine parts. Suitable for use in measuring, control and regulating circuits. Power circuits for electrical equipment used in automation engineering assembly lines, production lines and in all kinds of machines and plant engineering.
  • Cable Construction :
    • Bare copper, fine wire conductors according to EN 60228 Cl.6.
    • Core insulation of special PVC TI2 EN 50363-3.
    • Black core with continuous white numbering according to DINVDE 0293.
    • Green/yellow earth core in the outer layer (3 cores and above).
    • Cores stranded in layers with short lay-length.
    • Non-woven wrapping.
    • Tinned copper braiding.
    • Outer sheath of PUR.
    • Colour grey (RAL 7001).

Catalogue Link

Open Link

SERVO FD 90810 CY


  • For use in power chains or moving machine parts. Suitable for use in measuring, control and regulating circuits. Power circuits for electrical equipment used in automation engineering assembly lines, production lines and in all kinds of machines and plant engineering. The PVC-inner sheaths of these cables raise the mechanical strength of the cable.
  • Cable Construction :
    • Bare copper, fine wire conductors according to EN 60228 Cl.6.
    • Core insulation of special PVC TI2 EN 50363-3.
    • Black core with continuous white numbering according to DINVDE 0293.
    • Green/yellow earth core in the outer layer (3 cores and above).
    • Cores stranded in layers with short lay-length.
    • Non-woven wrapping.
    • PVC inner sheath, grey.
    • Tinned copper braiding.
    • Outer sheath of special PVC, TM2 to DIN/BS EN 50363-4.1.
    • Colour grey (RAL 7001).

Catalogue Link

Open Link

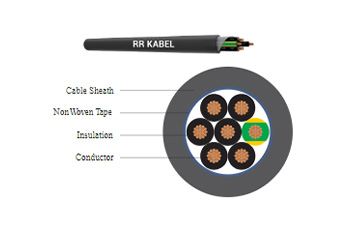

SERVO FD 85810


  • For use in power chains or moving machine parts. Suitable for use in measuring, control and regulating circuits. Power circuits for electrical equipment used in automation engineering assembly lines, production lines and in all kinds of and plant engineering.
  • Cable Construction :
    • Bare copper, fine wire conductors according to EN 60228 Cl. 6,
    • Core insulation of special PVC TI2 EN 50363-3.
    • Black core with continuous white numbering according to DINVDE 0293.
    • Green-yellow earth core in the outer layer (3 cores and above).
    • Non-woven wrapping.
    • Outer sheath of special PVC, TM2 to DIN/BS EN 50363-4.1.
    • Colour grey (RAL 7001).

Catalogue Link

Open Link

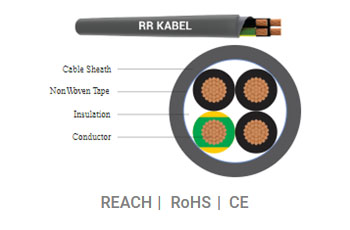

SERVO FD 80785 P


  • For power circuits in machine cabling power circuits for electrical equipment used in automation engineering. In dry damp or wet interiors with normal mechanical stress conditions for outdoor usage within the permitted range of temperature.
  • Cable Construction :
    • Bare copper, fine wire conductors according to EN 60228 Cl. 6.
    • TPE core insulation.
    • Black coloured with white numbers acc to VDE 0293.
    • Cores are twisted together with shorter lay length.
    • Non-woven wrapping.
    • Outer sheath: PUR grey (RAL 7001).

Catalogue Link

Open Link

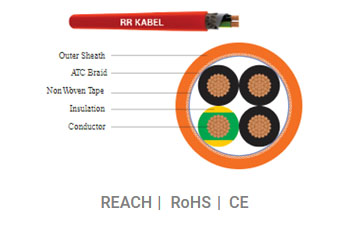

SERVO FD 75781 CY


  • For power circuits in machine cabling power circuits for electrical equipment used in automation engineering. In dry damp or wet interiors with normal mechanical stress conditions for outdoor usage within the permitted range of temperature.
  • Cable Construction :
    • Bare copper, fine wire conductors according to EN 60228 Cl. 6,
    • PP (polypropylene) core insulation.
    • Black coloured with white numbers acc to VDE 0293.
    • Cores are twisted together with shorter lay length.
    • Non-woven wrapping.
    • Tinned copper braiding.
    • Special PVC TM5 outer sheath to EN 50363-4.1
    • PVC orange (RAL 2003).

Catalogue Link

Open Link

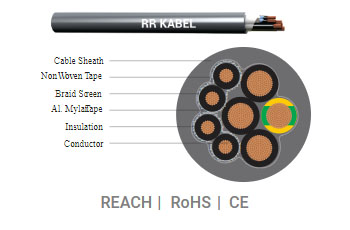

SERVO FD 70750 P


  • Connecting between the frequency convertor and the motor for power circuits in machine cabling. In dry damp or wet interiors with normal mechanical stress conditions for outdoor usage within the permitted range of temperature.
  • Cable Construction :
    • Bare copper, fine wire conductors according to EN 60228 cl. 6.
    • Core insulation of special PVC or TPE (control cores).
    • Control pairs screened with laminated film and braided with a layer of tinned-copper wires.
    • Cores and pairs are twisted together.
    • Non-woven wrapping.
    • Extruded PUR outer sheath grey (RAL 7001)

Catalogue Link

Open Link
