Lan Cable

• LAN cables are high performance cables used increasingly for modern computer network systems.
• These cables form the back bone of modern data transmission in industries, residential and commercial infrastructure.
• RATNALAN enhanced CAT 6 UTP capable of handling 100 + Mbps data rates. RATNALAN CAT 5e UTP is independently verified to exceed the requirements of EN 50173, ISO/IEC 11801 and TIA/EIA 568-B-1/B-2.

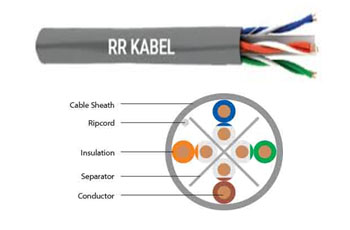

• Colour Code :
  • 1 Pair : White – orange stripe and orange
  • 2 Pair : White – green stripe and green
  • 3 Pair : White – blue stripe and blue
  • 4 Pair : White – brown stripe and brown
• Technical Data :
  • Conductor : Solid bare copper
  • Insulation : High density polyethylene
  • Pair : 2 Insulated conductors twisted together
  • Outer Jacket : FR PVC
  • Packing : Available in easy pull box of 100 mtr. and 305 mtr. for CAT 5e and CAT 6 is available only in 305 mtr. pack
