Feed Through Terminals

Universal (TS35mm & TS32mm) DIN Rail Mounted Feed Through Terminals in Polyamide 66 Housing offers the complete range suitable for all control and power application. The proven screw clamp & spring clamp design offers high contact force and is easy to use. The range covers terminals for conductor sizes from 0.5 sq mm to 95 sq mm for screw clamp and 0.5 sq mm to 16 sqmm for spring clamp. The special foot design provides a slot for easy mounting and removal of a single terminal from the stack, using a screwdriver.

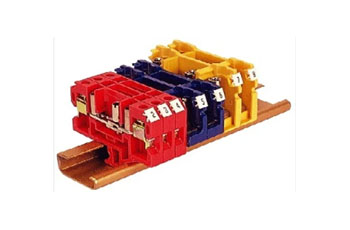

• Terminal screws are made using hardened steel. Screws are either Cheese head or Philips head type. These screws are suitably electroplated for environmental protection against corrosion. 'Elmex' terminals have clamp with double interlock construction that gives high level of mechanical stability to clamp and enhanced torque characteristics. These clamps are made up of CRCA steel and undergo heat treatment. Heat treatment ensures better mechanical properties and gives higher endurance.

Catalogue Link

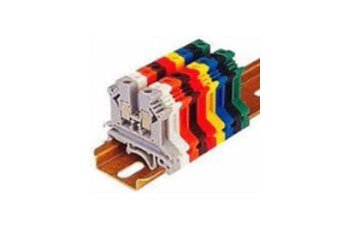

• Elmex' terminals have clamp with double interlock construction that give high level of mechanical stability to clamp and enhanced torque characteristics. These clamps are made up of CRCA steel and undergo heat treatment. Heat treatment ensures better mechanical properties and gives higher endurance. Spring loaded terminals have springs beneath the clamps that exerts required force on conductor to hold it within the terminal even when screws are fully loosened. These springs are made up of special grade spring steel material and grounded on both the ends to ensure uniform pressure on the clamp. These terminals are ideal choice for vibration prone applications.
