Single & Multi Core Cables

• Cable designed for internal wiring in switch control, relay and instrumentation panels of power switchgear and for purposes such as stationary, static appliances, internal connectors in rectifier equipment, motor starters and controllers.
• PVC 70°C cables suitable for general wiring in control cabinets, panels and power switchgear.
• FR PVC 70°C cables suitable for ambient wiring in control cabinets, panels and power switchgear.
• Technical Data :
  • IS 694 marked, FIA / TAC
  • Conductor : Electrolytic grade annealed copper
  • Voltage : Up to and including 1100V
  • Packing : Standard packing of 100 mtr. in coil. Longer length available on request.

Catalogue Link

• These cables are designed for residential and commercial infrastructure.
• They serve as the connecting medium in power and control panels, cabinets & switchgears.
• They can also used for the purposes such as stationary and static appliances, motors and for other single phase connections.

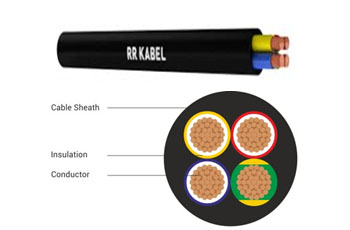

• Ratnaflex -M: PVC insulated & sheathed multicore cables suitable for all general purpose wirings for max. operating temperature of 70oC.
• Ratnaflex -M HR: HR PVC insulated & sheathed multicore cables suitable for higher operating temperature of 70oC.
• Ratnaflex -M FR: Flame Retardant (FR) multicore cable enhances safety and are suitable for max. operating temperature 70oC.
• Ratnaflex -M HRFR: Heat Resistant (HR) & Flame Retardant (FR) multicore cables are suitable for higher operating temperature up to 85oC with enhanced safety.
• Ratnaflex -M FR-LSH: Flame Retardant Low Smoke Low Halogen (FR-LSH) cables are suitable for wiring in public places like schools, hospitals, theatres, etc.
• Technical Data :
  • Approvals : IS 694 marked, FIA/TAC
  • Conductor : Electrolytic grade annealed copper Class 5 as per IS 8130
  • Standard Cable Colour : Black, grey & white
  • Voltage Rating : Up to and including 1100V
  • Packing : Standard packing of 100 mtr. in coil. Longer length available on request.
