Interface Modules

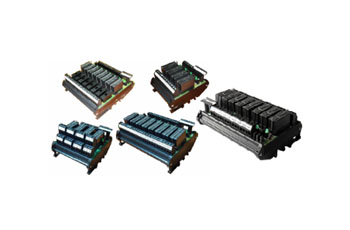

• We offer safe and maintenance-free connections for flexible signal wiring applications. They connect electronics to electrical systems at the control level and perform signal transmission and distribution in the control and field levels (system, machine) and vice versa. Trinity Touch offers a standard range of 1, 2, 4, 8 & 16 channel Electro mechanical relay modules. It included DC as well as AC coil relay cards available with options like fuse and indicators. Relay module with ultra slim relay have been introduced to compact the size of module.
• Customized modules are also provided as per customer’s requirements DC Input Type includes Interface relay modules with DC input voltages of 5V DC, 12V DC, 24V DC, 48V DC & 110V DC. Option of negative common or positive common is available with the help of jumpers. Customized solutions are also provided on request as per need.
• AC Input Type includes Interface relay modules with AC input voltages of 24V AC, 110V AC & 230V AC. Green LED is provided for coil status and diode across relay coil for protection. Customized solutions are also provided on request as per need.
